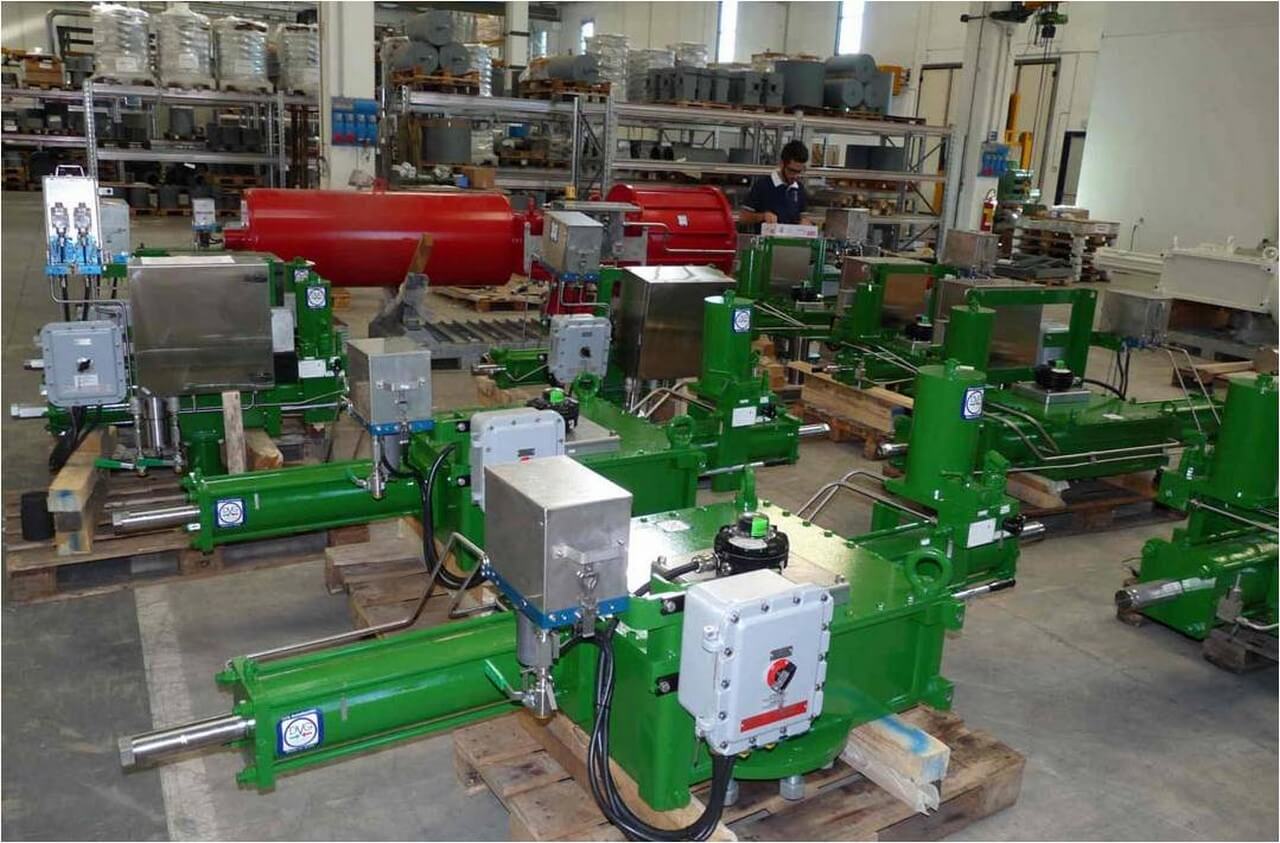

- Quarter turn SCOTCH YOKE Mechanism
- Single Acting
- Symmetric or canted yoke design
- Sweet Gas or Sour Gas supply (H2S<=6% / CO2<=10%) up to 160 BARG
- Output Torque Up to 800.000 Nm
- Standard temperature range -30°C +90°C
- Low temperature version -60°C + 90°C
- PED 2014/68/UE Compliant
- ATEX 2014/34/UE Compliant
- IP67M, NEMA 4, 4x & 6 as minimum
- SIL3 Certified IEC 61508
- Corrosion resistant cylinder
- Manual Override available
- Protected travel stops are standard
- Modular concept
- Actuator in carbon steel – NO Aluminum NO Cast Iron
- Pressure retaining components and power springs 3.1 Certified according to EN10204
- Basic control system including Local & Remote control
- Additional controls function available on request
