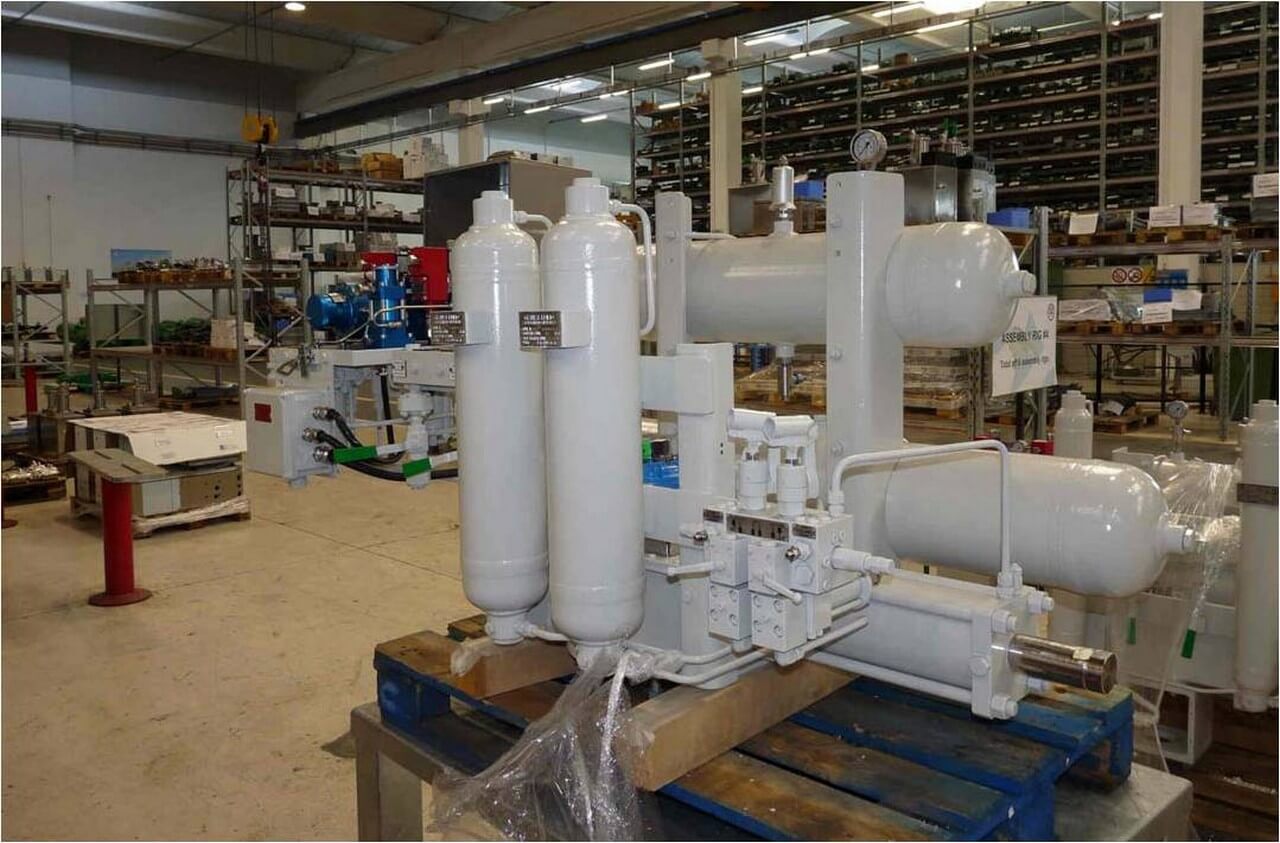

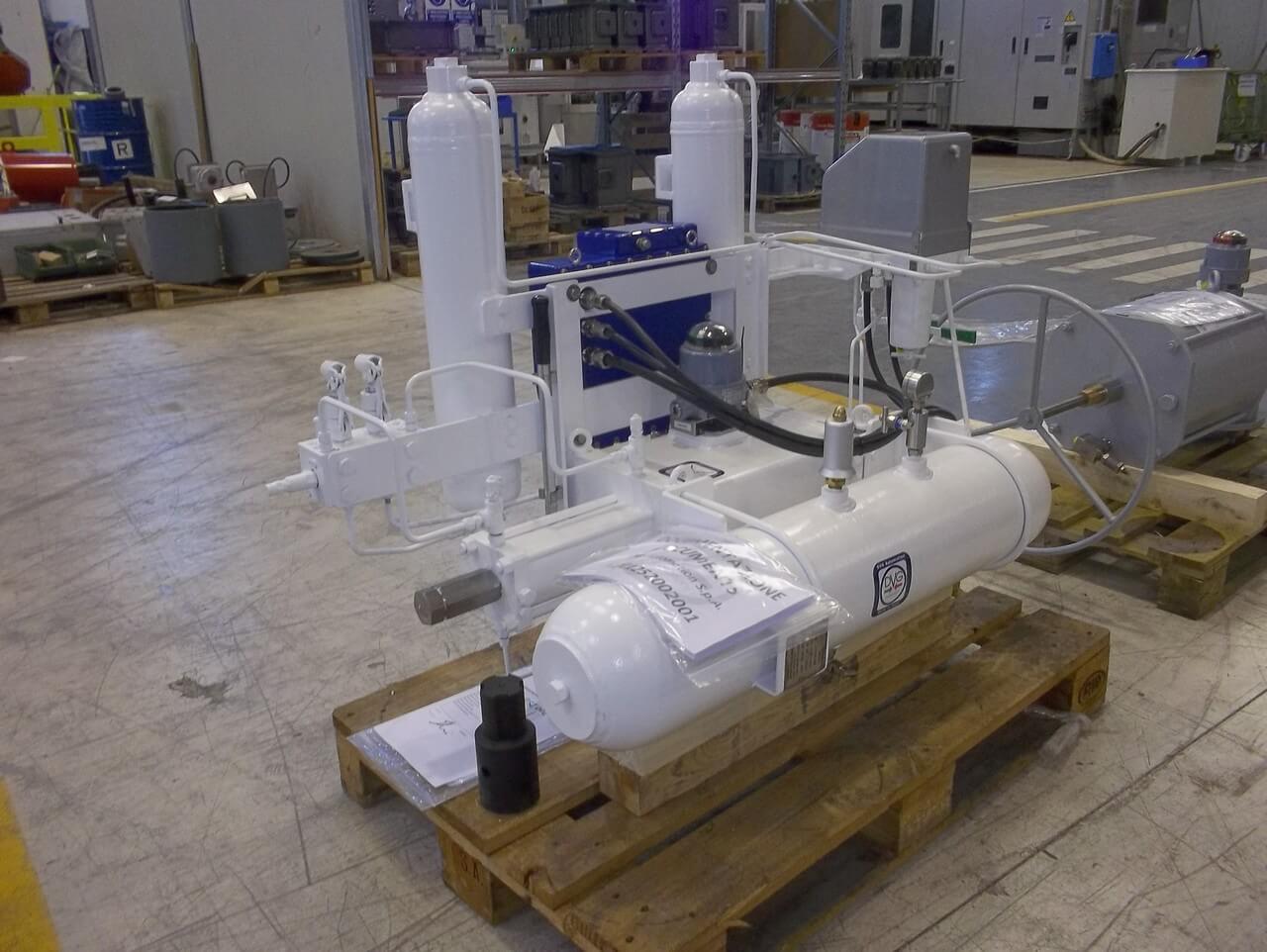

- Quarter turn SCOTCH YOKE Mechanism
- Double Acting
- Symmetric or canted yoke design
- Sweet Gas or Sour Gas supply (H2S<=6% / CO2<=10%) up to 160 BARG
- Output Torque Up to 800.000 Nm
- Gas Over Oil tanks, certified according to International Standard and Customer request
- Hydraulic manual override by means of two separate hand pumps (1 for open and 1 for close)
- Standard temperature range -30°C +90°C, Low temperature version -60°C + 90°C
- PED 97/23/EC Compliant
- ATEX 94/9/EC Compliant
- IP67M, NEMA 4, 4x & 6 as minimum
- Corrosion resistant cylinder
- Protected travel stops are standard
- Actuator in carbon steel – NO Aluminum NO Cast Iron
- Pressure retaining components and power springs 3.1 Certified according to EN10204
- Basic control system including Local & Remote control
- torque limiting device
- ESD function for low or high pressure
- ESD function for electric supply failure to SOV
- Line Break System
- Opening prevention for high differential pressure across the valve
